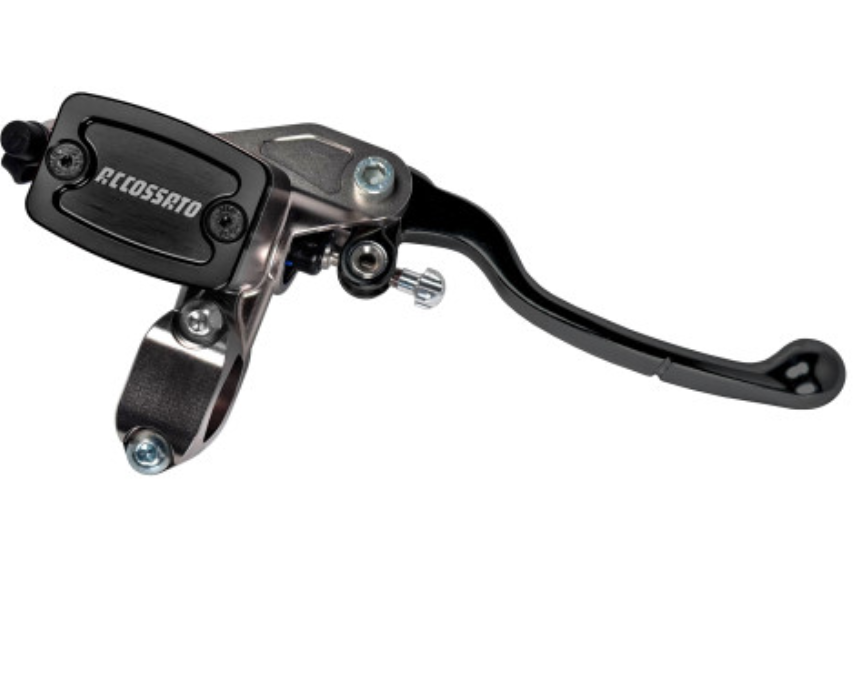

Accossato CY014 13.5 mm axial brake master cylinder with integrated reservoir - Offroad, Moto, ATV

Accossato CY014 13.5 mm Axial Brake Master Cylinder with Integrated Reservoir Offroad, Moto, ATV The Accossato CY014 axial brake master cylinder is a compact and robust pump designed for off-road applications, motorcycles, scooters, and pit bikes. It is also suitable for ATV projects where the braking system parameters allow the use of a 13.5 mm piston. The CY014 model uses a 13.5 mm piston and features an integrated brake fluid reservoir, allowing for simple and clean handlebar mounting without the need for a separate external reservoir. Its axial construction provides a reliable and compact solution for braking systems requiring a small-sized pump with progressive modulation and good lever control. Main features Manufacturer: Accossato Model: CY014 Type: Axial brake master cylinder Piston diameter: 13.5 mm Brake fluid reservoir: Integrated Lever: Foldable Brake line connection: M10x1 Use: Off-road, moto, scooter, pit bike Compact construction Direct handlebar mounting Design oriented towards durability and control Made in Italy 13.5 mm Piston The 13.5 mm piston diameter offers a good balance between hydraulic pressure and lever travel. Compared to a larger diameter pump, a 13.5 mm pump can provide: higher hydraulic pressure for the same lever force; progressive modulation; longer lever travel; good control in off-road applications. For systems with multiple calipers or high fluid volume, compatibility must be verified before installation. Integrated reservoir An important advantage of the CY014 model is the reservoir integrated directly into the pump body. This configuration offers: compact mounting; fewer external components; elimination of the hose between the pump and the reservoir; better protection for off-road use; clean look on the handlebar. Axial pump for off-road Accossato recommends the CY014 for uses such as: off-road motorcycles; enduro; pit bike; scooter; custom projects; certain ATV applications. In an axial pump, the piston is positioned differently than in a radial pump, which allows for a simpler and very compact construction. Use on ATVs The Accossato CY014 can also be considered for certain ATV or UTV projects, but the braking system configuration must be verified. For ATVs, you must consider: the number of calipers actuated; the number of pistons in the calipers; the diameter of the pistons; separate or combined braking system; the diameter of the original pump. For a system that actuates multiple calipers simultaneously, a pump with a larger piston may be more suitable. Foldable lever The foldable lever is a significant advantage in off-road, as it can reduce the risk of damage in the event of an impact or fall. This type of lever is recommended especially for: enduro; ATV; pit bike; intense off-road use. Compatibility Compatibility should not be determined solely by the handlebar diameter or the M10x1 connection. Before installation, it must be verified if the 13.5 mm piston is suitable for the vehicle's hydraulic system. Moka GSM can verify compatibility based on: brand; model; year; type of calipers; diameter of the original pump. Accossato Romania Through Moka GSM, you can also order other Accossato products that are not currently listed on the site. If you need: radial brake master cylinders; axial brake master cylinders; clutch master cylinders; brake pads; calipers; discs; levers; reservoirs; accessories and spare parts, you can request the desired code for verification and ordering.
